Electric Vehicles(EV)
-
Motor Types
Electric Vehicles(EV) - Motors & Controllers
We have SPM (Surface Permanent Magnet) and IPM (Interior Permanent Magnets) motors based on the application and requirement.
Our technical expertise in Motors and Controllers (hardware and software) provides the customer an unique opportunity to choose the suitable motor for their target application. We have capabilities to customize the specifications (Hardware & Software ) to provide the best solution for the target applications.
For example high-torque requirements such as scooters , require hub motors (SPM), but in case there requirement is high-speed is an important parameter in a scooter or motorcycle then we can customize the central mount motor (IPM) to address the requirement.
Similarly in Industrial applications like forklifts, gardenmower etc low voltage and central mount motor will be preferable. All our motors support full vector control software.

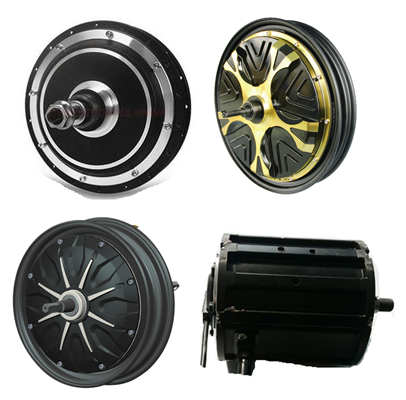

Some of the sample motors product line up is shown below, as mentioned we can customize the motor specifications as per the requirements.
Rated Voltage(DC/V) | 48 | 48 | 48 | 60 |
Voltage Range(DC/V) | 40-75 | 40-75 | 40-75 | 50-90 |
Rated Power(W) | 600 | 800 | 1200 | 1500 |
Maximum Torque(Nm) | 75 | 90 | 110 | 20 |
Speed(rpm) | 540 | 600 | 600 | 3000 |
* Images used are for reference and illustrative purposes only
